Spectr Pro Chassis Kit for SCX24

Welcome to Killr Chassis!

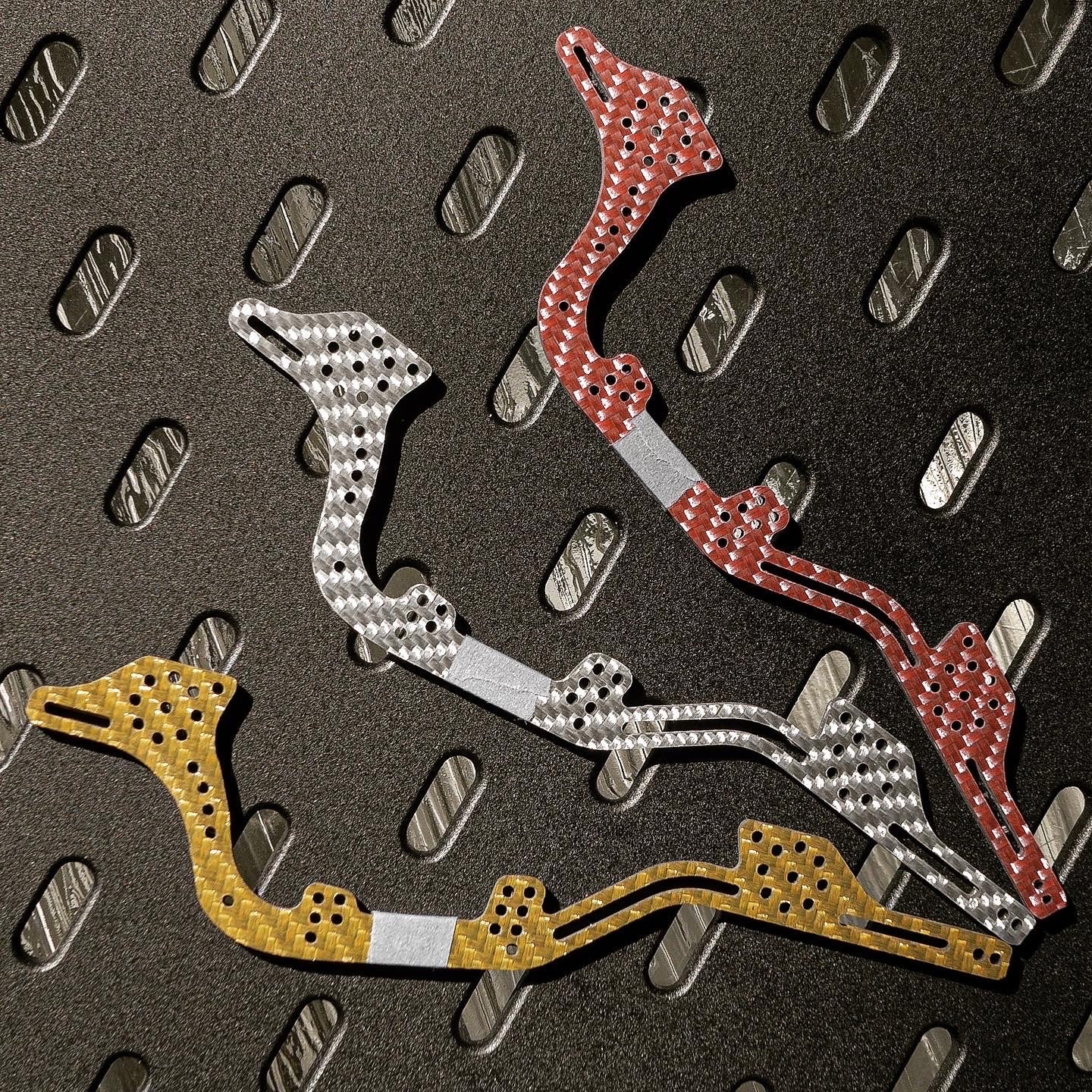

This is a competition-proven chassis kit for the SCX24. The chassis rails are CNC machined from 1.5mm Carbon Fiber. The chassis components are produced using HP's Multi Jet Fusion process. Along with durable construction, this chassis kit offers a slew of performance enhancing features to turn up the capability of your SCX24.

Performance features include:
- 18 shock mounting options
- 12 upper link mounting options
- 11º angled skid plate
- Variable transmission angle (5.55° / 11°)
- CNC Machined, Delrin flat skid
- Reversible, slotted transmission mounting
- Adjustable link geometry
- Modular chassis components
- Adjustable magnetic front body mount
- Mounting holes for stock SCX24 rear body hinge

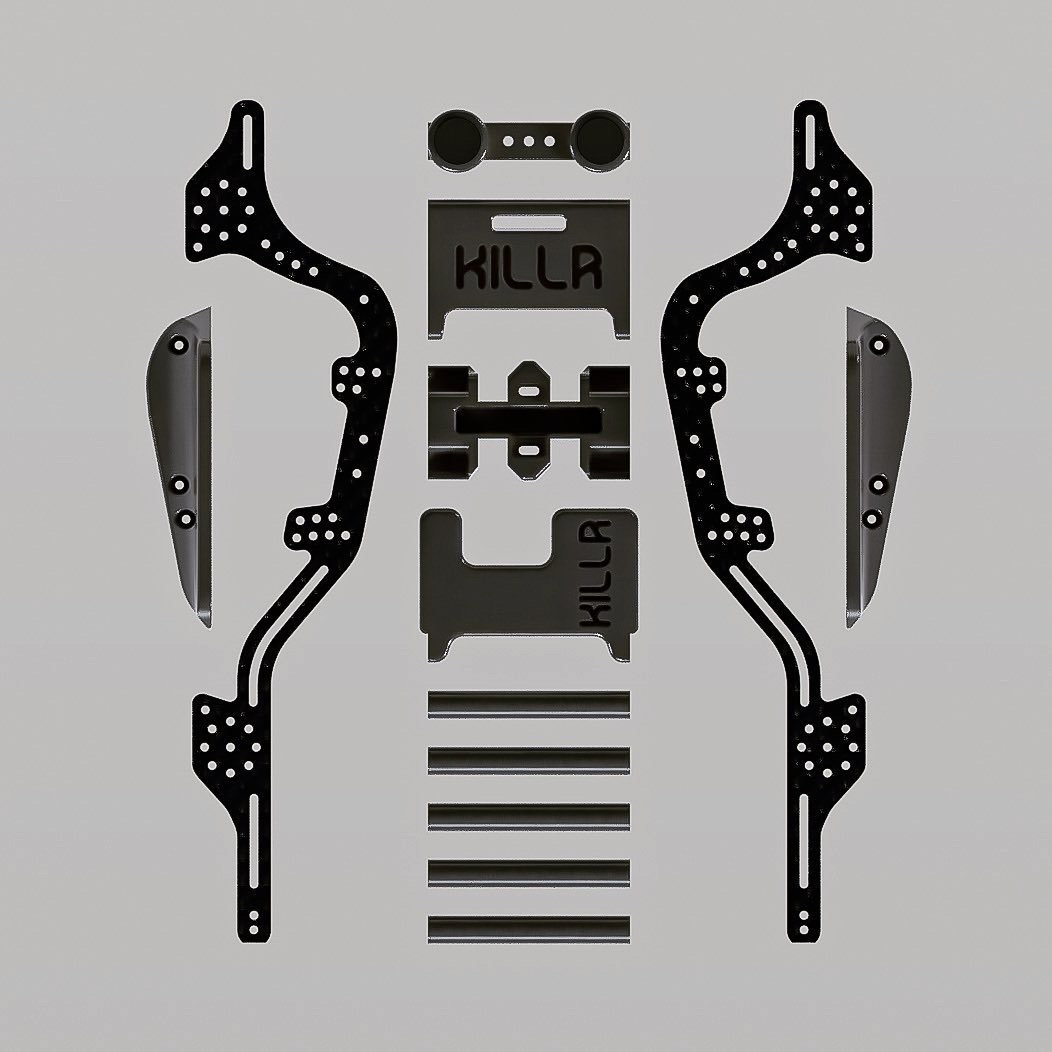

What you'll receive:
- 2x Spectr Pro chassis rails
- 1x CNC Delrin skid plate
- 2x Boatside sliders
- 1x Front tray
- 1x Rear tray
- 1x Front body mount
- 4x Neodymium magnets
- 5x Chassis braces
- 8x M1.4 nuts

Why choose the Spectr Chassis Kit?
- Our chassis kit was designed over the course of 11 months and a number of changes were made in order to achieve a high-performance final product. Our chassis kit offers an impressive skid plate angle that allows you to conquer the most intimidating obstacles. The Spectr Chassis Kit also makes it easy to achieve your desired weight bias thanks to a slew of mounting locations for your electronics. This chassis kit will allow you to run a variety of motor options and is easily adaptable should you decide to change your setup. Lastly, this design has received rigorous testing and has proven that it can withstand the stresses associated with competition crawling.

*Things to consider*
- Hardware is NOT included
- Must use blue loctite on M1.4 nuts
- Optimal performance is achieved when using a smaller battery than the one included with the SCX24. We recommend the ProTek 240mah 2s lipo, Galaxy 250mah 3s lipo, or similar size lipos.
- Components are 3D printed, be careful not to over tighten hardware when assembling the kit. Holes are undersized for optimal fit.
- This chassis kit is designed to work with C10/Jeep links. Link lengths of ±5mm will work. Custom link sets specific to this kit will be available from @rcsteve710 via Instagram.
-A four-linked front end is required to eliminate driveshaft interference.
- Double bent high clearance rear links are recommended in order to achieve maximum performance. This may require the use of a link riser depending on your suspension set up.
